The fuel heater is a combined unit composed of a ventilator, an electric motor and a radiator. Fuel heaters are suitable for various types of workshops and workshops, incubation and breeding, gardening and planting, wood drying, indoor heating, etc. where air is allowed to recirculate. When the air does not contain dust or flammable gases, it can be used as circulating air for heating For use. The fuel heater is mainly composed of an air heater and a fan. The air heater dissipates heat, and then the fan sends out to adjust the indoor air temperature. The air heater is composed of spiral finned tubes, the platoon tube and the heat medium circulation pipe are integrally welded, and the working pressure of the heater is below 0.8MPa.

<sup>2. Equipped with Auto-Temperature control device, auto work after setting-up temperature, no need labor
3. Auto electronic ignition and auto-operation
4.Equipped with fuel tank, the heater can be used directly without any other work
5.Trolley design makes the heater flexible to move.
6. Combustion chamber is designed with 3 layers,heat insulation is excellent.
7. The heater surface is done with plastic spraying, aesthetic looking and excellent insulation.
8.With fire off protection and over-heating protection device and no safe problems; auto-stop under the condition of non-fuel or low fuel.</sup>

Adopt high quality photosensitive eye, intelligent photosensitive, lack of oil, lack of oxygen, lack of power and no fire will automatically cut off the oil, safe and reliable

Intelligent constant temperature control, more fuel saving, automatic stop when the temperature reaches the set ideal temperature,fuel consumption stops, when the temperature is lower than the set temperature, the equipment automatically start heating system,energy saving, environmental protection and more safety.

Fuel tank cap

Tighten the seal, the visual oil gauge is 8mm thick, and the oil tank is thickened.

1.Pure copper motor

2.Primary safety of insulation
3.Fully enclosed waterproof and dustproof :IPX4
4.Leakage protection, high current grounding wire
5.Pure aluminum shell anti-rust, fast heat dissipation

Model	Thermal Output	Rated Voltage	Air Flow (m³/h)	Fuel consumption	Fuel tank capacity	N.W (kg)	Product Size (mm)

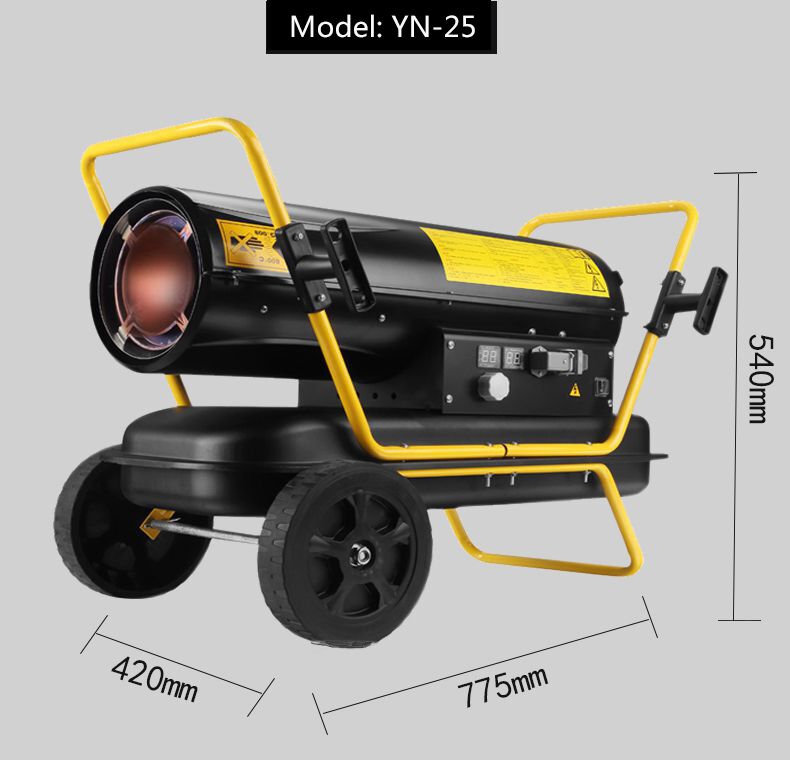

OIL(s)-20KW	20KW	220v/50HZ/monophase	595	1.7kg/h	19L	17	775X420X540
OIL(s)-30KW	30KW	220v/50HZ/monophase	720	2.4kg/h	19L	21.5	920X456X630

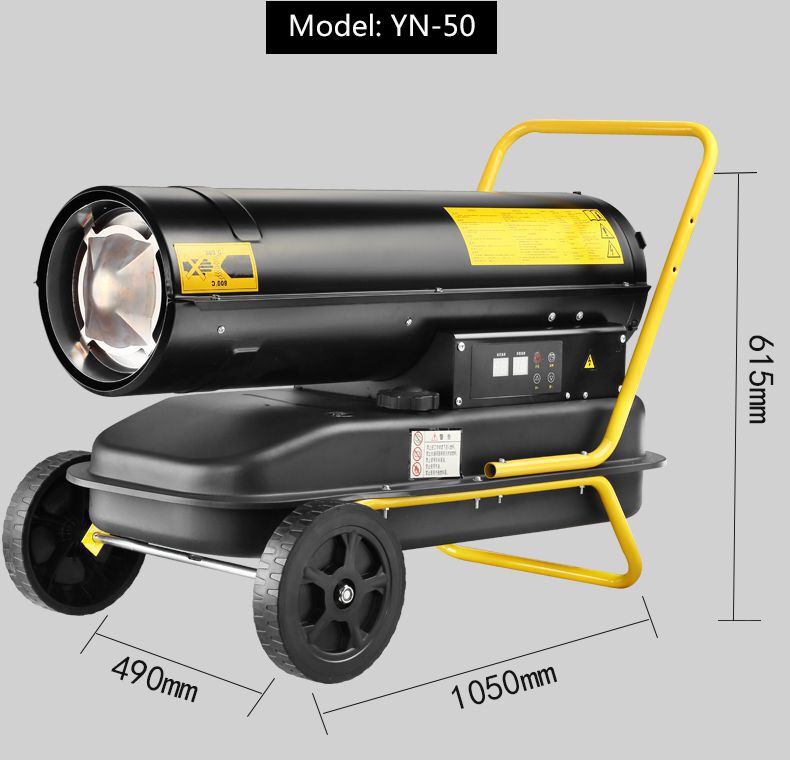

OIL(s)-50KW	50KW	220v/50HZ/monophase	1100	4.0kg/h	56L	27.4	1050X490X615

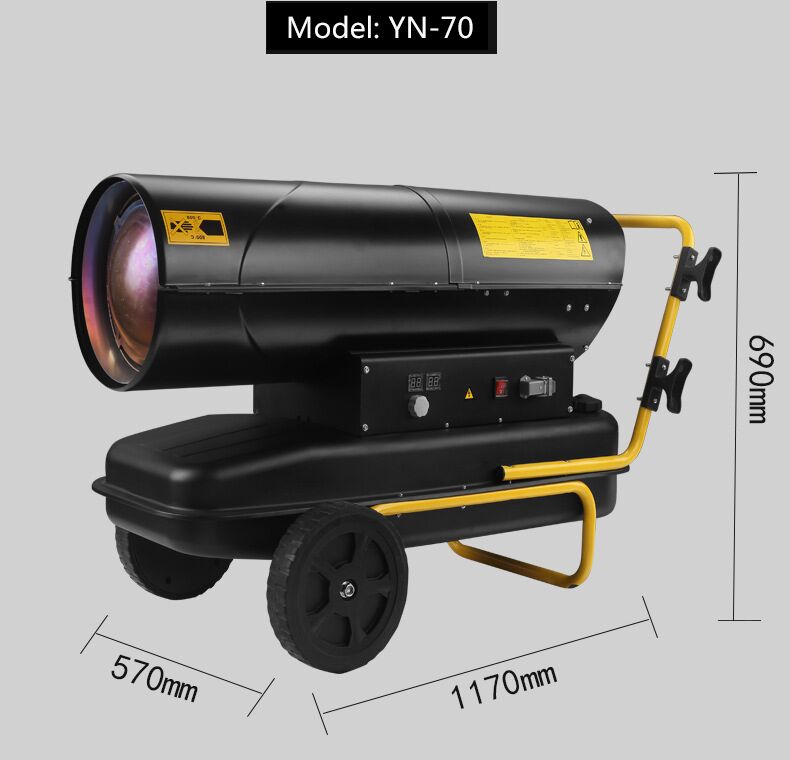

OIL(s)-70KW	70KW	220v/50HZ/monophase	1300	5.4kg/h	68L	40.8	1170X570X690
