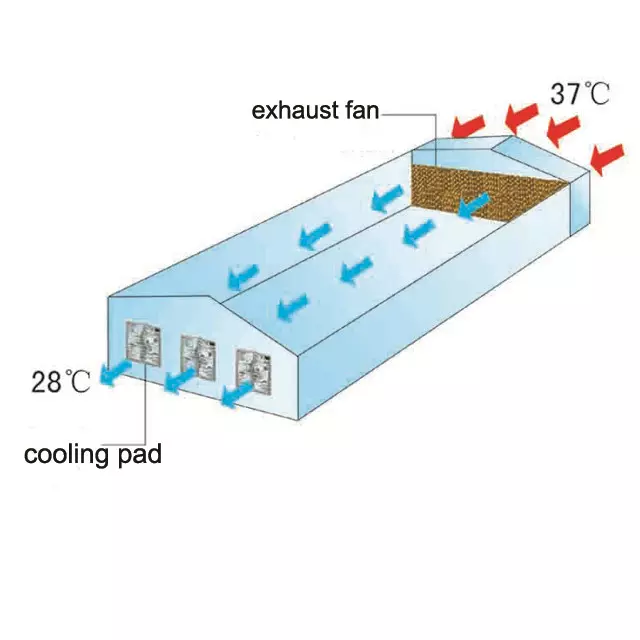

Evaporative Cooling Pad installed at one end of the greenhouse, the suction ventilator installed in the other end. When the air in greenhouse is needed to cool down, the control system of fan will start, the indoor air is forced out and build-up the negative pressure; At the same time, the water pump water the wet pad. The negative pressure cause the indraft through the wet pad , leading to evaporation and cooling, then the cold air flow through the greenhouse, absorb the indoor heat, so as to achieve the purpose of the circulating cooling.

Cooling Pad Features

1. cooling pad use new material and space crossing linking technology, high water absorbability ,high water-resistance, anti-mildew and long service life

2. The Product contains surface active agent for natural water absorbability ,fast pervasion speed, lasting effectiveness.

3. Strict production as per standard, width of 600mm cooling pad involves 85 sheets

4. Raw material adopts imported kraft paper, we have 95g/sqm and 105g/sqm for option. Tension resistance at 70N, Absorbability height as 45mm/10min, moisture at 5-8%, humidity at 18N

5. Products don't contain Phenol or any other chemical substances which easily makes skin allergy. Non-toxic and harmless to human body, safety, energy saving, environment protection and economic applicable.

Performance Curve of Cooling Pad:
