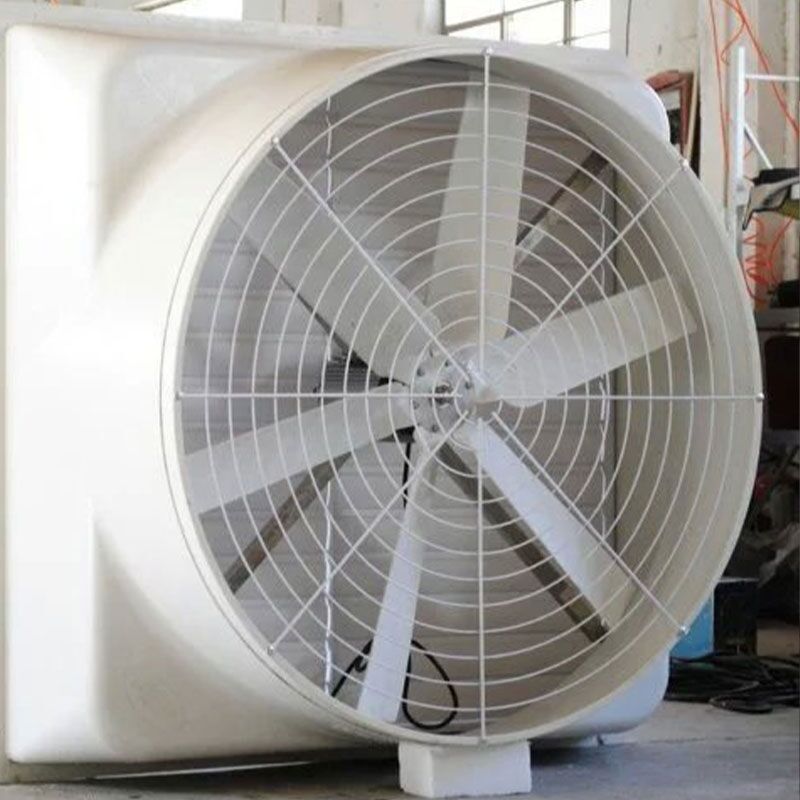

FRP Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

• Frame

  1. Huge airflow, Low noise, high efficiency.Good looking, the surface smoothness & gloss without rough edges.
  2.Be introduced the advanced technology from Europe, suitable for various environment.
  3.Fan housing: strength fiberglass.
  4.Shutters: good plastic
  5.Fan Propeller: 6pcs blades of propeller made by mould pressing.
  6.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over- load protection inside.
  7.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.
  8.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience for installation.

Model	Voltage (V)	Power (W)	Noise (dB)	Speed (r/min)	Air Volume (m3/h)	Drum diameter (mm)	Product Size (mm)
MTG-1660	380/220	1100	75	450	63000	1440	1660*1660*590
MTG-1460	380/220	900	68	450	44500	1260	1460*1460*580
MTG-1260	380/220	400	65	540	32000	1060	1260*1260*560
MTG-1060	380/220	400	63	540	28000	900	1060*1060*500
MTG-850	380/220	370	63	720	20000	665	850*850*480
MTG-760	380/220	350	55	900	13000	615	760*760*440
MTG-660	380/220	350	50	900	10000	515	660*660*440
MTG-560	380/220	350	50	900	8000	406	560*560*430

Frame

1. The frame is designed according to the aerodynamic principle.
2. It is made of high-strength anti-corrosion FRP material and has a thickened design, beautiful appearance, strong waterproof,corrosion resistance and strong aging resistance.

Motor

Motor from famous brands in China and Siemens can be accessible with the voltage and frequency of motor can be provided with customized services. Chinese motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.
